fast
installation
mobile
machine
efficient
drying of maize
The STELA MUF mobile dryers with a capacity of up to 150 t/day ensure efficient
drying of maize on farms even without a post-harvest line.

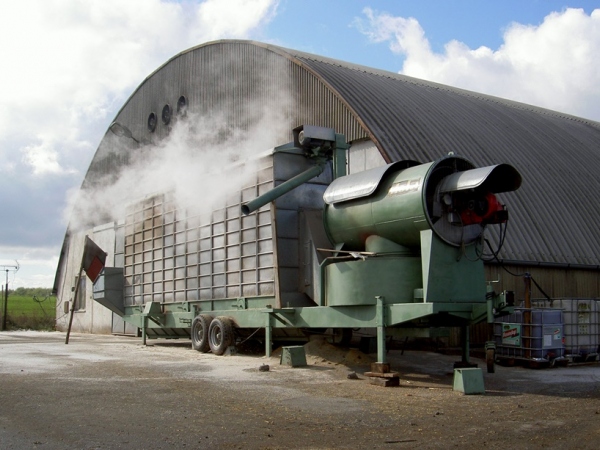

The STELA MUF range of mobile dryers is designed primarily for drying maize, sunflower and rapeseed. It is the ideal solution for farmers and farms without a post-harvest line. MUF dryers can work directly in the field or in the farm yard. The low consumption of heating medium makes MUF dryers close to tower stationary dryers. The advantage is also a quick return on investment! STELA MUF dryer models offer a corn drying capacity of 45 to 150 t/day.
Filling the dryer with grain via the infeed hopper can be done with a front loader or conveyor. After filling, the drying process is programmed and then runs fully automatically for several hours, drying in batches. At the selected speed, the grain circulates in the dryer and is exposed to a flow of drying air, first at a high temperature, in a second phase at a lower temperature. This is followed by a phase of cooling the charge with ambient air and shutting down the process. The dryer is then emptied either onto a conveyor or the floor for further handling with a front loader using a conventional rake conveyor. The record low consumption of heating medium makes MUF dryers close to tower stationary dryers. The advantage is also the fast return on investment!

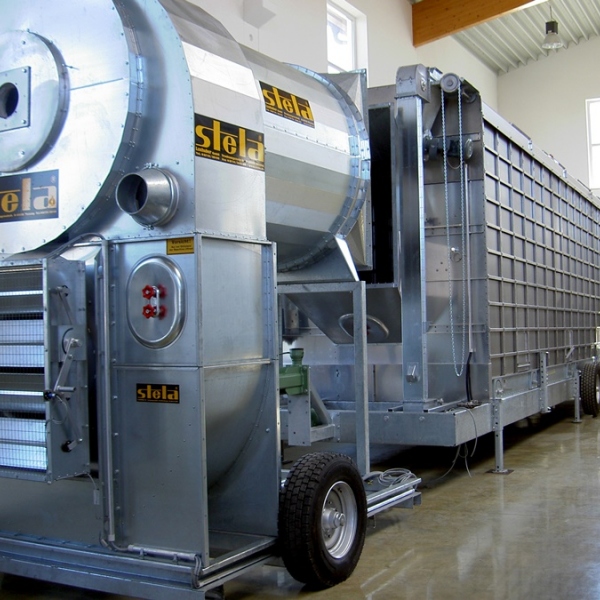

The working area of the STELA MUF (Mais Umlauf Fahrbar) is formed by a vertical shaft between the outer and inner perforated wall, with the drying air permeating the material layer across. The drying layer of the material is 0.5 m and the perforation of the wall makes it possible to dry even small rapeseed. The whole plant is mounted on a single-axle chassis. The two drying shafts are equipped with turnstiles at the bottom and belted with a rake conveyor. There is a spacious intake hopper at the front and a fan and air heater on the other side. The drying shafts have walls made of longitudinally perforated sheet metal. Between the shafts, there is an inlet air chamber into which a sub-pipe from the fan enters. The fan is positioned 'flat' and a cylindrical direct air heater is connected to the inlet.
Equipment of STELA MUF dryers
| Type Dryers | Units | Power | In drying |
|---|---|---|---|
| MUF 45 | t za 24h | 45 | from 35% to 15% |
| MUF 70 | t za 24h | 70 | from 35% to 15% |
| MUF 110 | t za 24h | 110 | from 35% to 15% |
